Split Columns into Rows

The Split Columns Into Rows algorithm allows you to transpose the content under a specific column into rows under a new column.



The table below provides the example of this data manipulation.



Source Column Target Column

1.23

1



23



To configure this manipulate step, follow the instructions below:



  1. In the Admin Navigation tree, select Interfaces > InterfaceName > Tasks > TaskName > Steps.
  2. On the toolbar, click New >New Manipulate Step.

Creating a New Manipulate Step

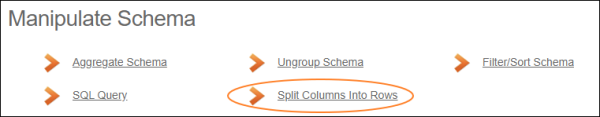

  1. Navigate to the Manipulate Schema section and select Split Columns into Rows.

Manipulate Schema Section

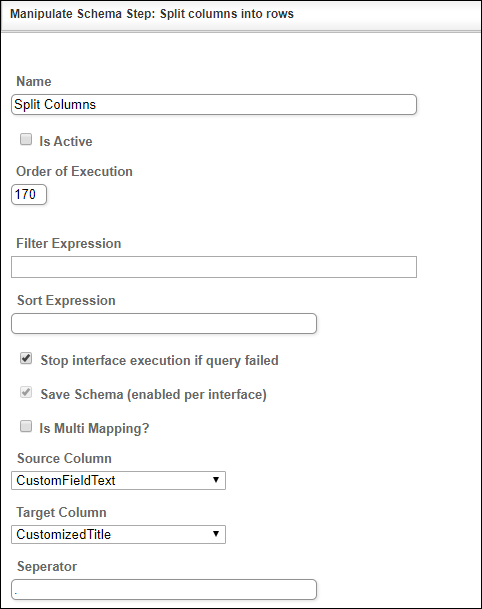

  1. In the Split Columns into Rows work area, fill in the following fields:



Fields Description

Name

Provide a distinctive name for this step.

Is Active

Select the check box to engage the scheduler for this step.

Order of Execution

Enter the order in which this step should be executed.

Filter Expression

Optional. Use this filed to filter data from the source database prior to inserting it into the Schema table.

Sort Expression

Optional. Use this field to sort data from the source database prior to inserting it into the Schema table.

Stop interface execution if query failed

Optional. If enabled, the system will stop any data manipulation if the query returns an error.

Save Schema (enabled per interface)

If selected, the schema is created for this step.

Source Column

Select the source column for data manipulation.

Target Column

Select the target column you want to transpose data to.

Separator

Specify a valid separator. For example, “,” or “.”



  1. Click the Save button.
